The 35MMFHDXS CMOS sensor is featured on the Canon ME20F-SH, a specialised, multipurpose camera system. If you are technically inclined you may want to have a look at this Canon White Paper, talking about the 35MMFHDXS CMOS sensor.

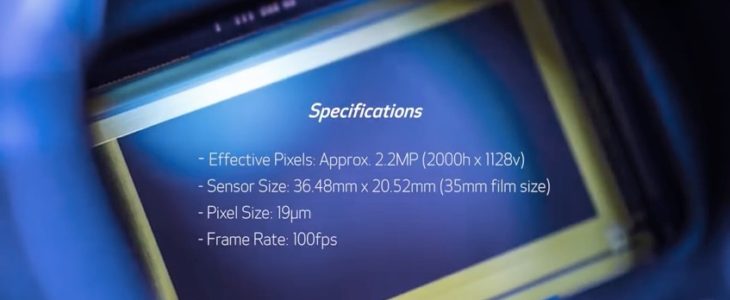

The sensor specifications:
- Sensor size: 35mm film size (36.48mm x 20.52mm)
- Number of effective pixels: 2000h x 1128v, Approx. 2.2MP
- Filter types:
- 35MMFHDXSC: RGB
- 35MMFHDXSM: Monochrome
- Pixel size: 19μm x 19μm
- Progressive scan
- Rolling shutter
- Serial communication
- 180pin ceramic PGA
- Sensitivity:
- 35MMFHDXSC (Green): 1,100,000e/lx/sec @gain x1
- 35MMFHDXSM: 2,100,000e/lx/sec @gain x1
- Saturation: 61,000e @gain x1
- Dark RN: 2.2e rms @gain x16, around 35 °C
- Dark Current: 250e/sec @gain x16, 60°C
- Simultaneous reading of vertical 4 lines
- Drive frequency: 16ch x 18MHz (Recommended)
- Output format: Source follower output (Analog)
- Built in column amplifiers: (Basic pre-amplifier gain: x1, x4, x16)
- Power consumption: 2.2W (At 60 fps under recommended operating conditions)
- Power supply voltage: 5V, 3.3V, others
- Package size: 60.9mm x 44.6mm x 3.57mm
